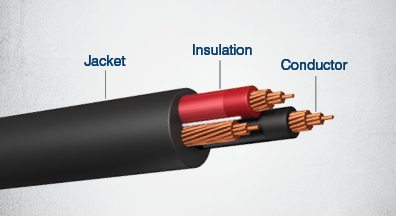

Construction:
Single core and multicore cables for multipurpose applications.
Technical Specifications:
- Voltage Grade: Up to 1100 V
- Conductor: Aluminum / Copper, Solid / Standard / Flexible Conductor
- Range: Single core up to 1000 Sq mm, Multicore up to 400 Sq mm, Max 61 cores of 1.5 Sq mm & 2.5 Sq mm
- Primary Insulation: General Purpose PVC / Heat Resistant PVC / LDPE / XLPE
- Inner Sheath: PVC / HRPVC / FRPVC / FRLS PVC / ZHFR / LSF
- Armouring: GI Round Wire / Flat Strip or Wire Braiding
- Outer Sheath: General purpose PVC / HRPVC / FRLS PVC / ZHFR / LSF
- Operating Temperature: -20°C to +90°C
- Test Voltage: 2500 V-AC
- Bending Radius: 10D
Features:
- Designed to withstand repeated reeling and unreeling operations.
- Suitable for all weather conditions: wet, dry, and snowy.
Core Marking:
The cable features color-coded cores with 1-5 cores (Green/Yellow, Blue, Brown, Black, Grey), or numbered cores with one earth core in Green/Yellow.
Standards:
- IS-694
- IS-1554 (Part-I)
- IS-7098 (Part-I)
- IEC 60502-1
- BS-6346
Core Identification:
- 1 Core: Any single color
- 2 Core: Red and Black
- 3 Core: Red, Yellow & Blue
- 4 Core: Red, Yellow, Blue & Black
- 5 Core: Red, Yellow, Blue, Black & Grey
- 6 Cores and Above: Two adjacent cores in each layer (Blue & Yellow), remaining cores Grey
In addition, combinations of colors like Red, Black, Blue, Brown, Green, Grey, Orange, Violet, White, and Yellow are available. Alternatively, a single color insulation with number printing on all cores is also offered.
Designation Codes:
- A2XY: Aluminum Conductor, XLPE Insulated, PVC Outer Sheath
- A2XWaY: Aluminum Conductor, XLPE Insulated, Aluminum Wire Armoured
- A2XFaY: Aluminum Conductor, XLPE Insulated, Aluminum Strip Armoured
- A2XWY: Aluminum Conductor, XLPE Insulated, GI Wire Armoured
- AYY: Aluminum Conductor, PVC Insulated & Outer Sheath
- AYWaY: Aluminum Conductor, PVC Insulated, Aluminum Wire Armoured
- AYFaY: Aluminum Conductor, PVC Insulated, Aluminum Strip Armoured
- AYWY: Aluminum Conductor, PVC Insulated, Wire Armoured
- A2XFY: Aluminum Conductor, XLPE Insulated, GI Strip Armoured
- AWFY: Aluminum Conductor, PVC Insulated, GI Strip Armoured
Note: No abbreviations are used when the conductor material is Copper.
